16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication

Model Number : Black Splicing Closure

Type : Optical Fiber Splicing Closure

Place of Origin : China

Brand Name : OEM

Use : Fiber optic manufacture

Warranty Time : 1 year

Network : None

Wiring Devices : ODF

Certification : CE, ISO, RoHS, GS

Material : PC+ABS

Color : Black

Dimensions : 248*276*124.5mm

Temperature : -50 ~ +85

IP : IP55

Lock : Safe Shaped Lock

Transport Package : Carton

MOQ : 100 pieces

Price : $4.50 - $5.80/pieces

Contact Now

IP68 Waterproof FTTX 16 Cable Ports FTTH Fiber Distribution Box Fdb Optical Communication Splice Closure for Fiber Optic

Description

The fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Specification
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication






Application
It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.
FEATURE
1. Excessive fibers can be stored in storage baskets. Easy in fiber management. 2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed. 3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber. 4. The splice trays are hinged for access to any splice tray, without disturbing other trays. 5. The inner parts and fixing parts are made of stainless steel 6. With a earthing device protect it from damage by lightning 7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade 2. Atmospheric Pressure: 70~ 150Kpa 3. Axial Tension: >2000N/ 1min 4. Stretching Resistance: 2500N/ 10 square centimetre( 1min) 5. Insulation resistance: >2* 104MΩ 6. Voltage Strength: 15KV/ 1min, no arcover or breakdown 7. Pressure in the water: 50m/72hours 8. Splice tray with optical taking-in radius: 30mm. Low optical loss.
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication

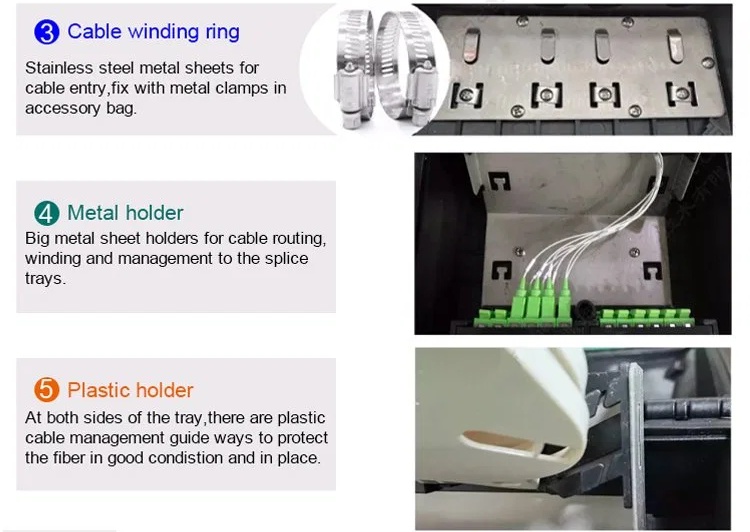

Details Images
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
16 Ports IP68 Waterproof FTTX FTTH Fiber Distribution Box for Optical Communication
1. Are you a manufacturer or trade company?
We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?
Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?
After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs!

5. What is the quality of your product?
All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?
Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?
1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you!
